Honeycomb Charcoal Briquette Machine

Honeycomb is a common burning tool in daily life, which can be used for heating or BBQ, the honeycomb charcoal briquette machine produced by our Lantian technology team can press and process honeycomb, and the mould can be replaced to meet the needs of customers for various sizes or shapes. The honeycomb after pressing has good forming effect, smoke-free pollution during combustion, environmental protection and energy saving.

Machines description

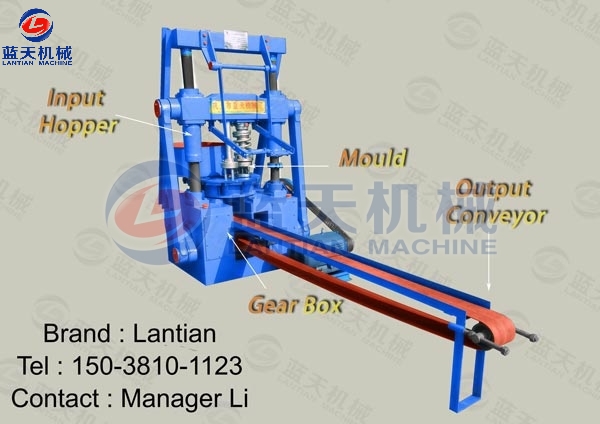

Honeycomb charcoal briquette machine also uses stamping form to press and shape raw materials after carbonized. The machine is composed of main machine, input hopper, gear box, mould and output conveyor belt. After opening the switch, they can automatically feed, press and output, and the shape and size of the die can be changed according to the customer's needs.

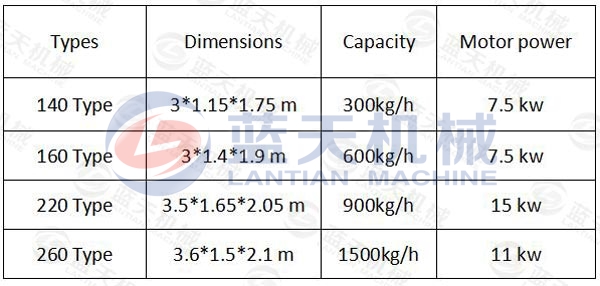

Parameter

Finished product display

Finished products of honeycomb charcoal briquette machine

Please click here to watch video about honeycomb charcoal briquette machine

Burning effect

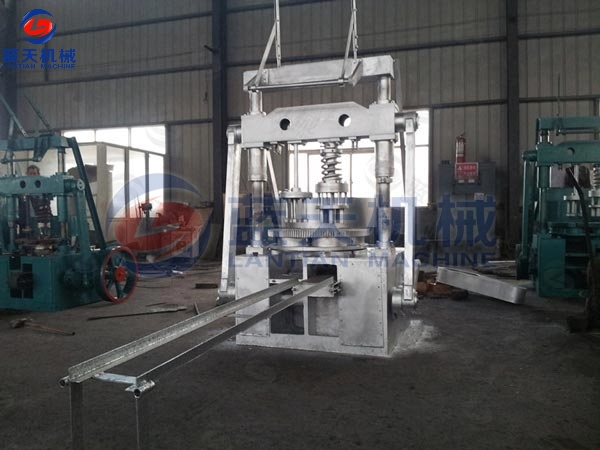

Machine details

Machines details of honeycomb charcoal briquette machine

1. Automatic feeding, pressing and output, saving customers time

2. The mould shape can be customized, with a diameter of 30-260 mm and a height of up to 50 mm.

3. The spring is designed to adjust the pressure of the machine, and the machine has simple structure and convenient operation and maintenance.

4. The finished product has no chemical additives, smokeless and pollution-free combustion, and long combustion time.

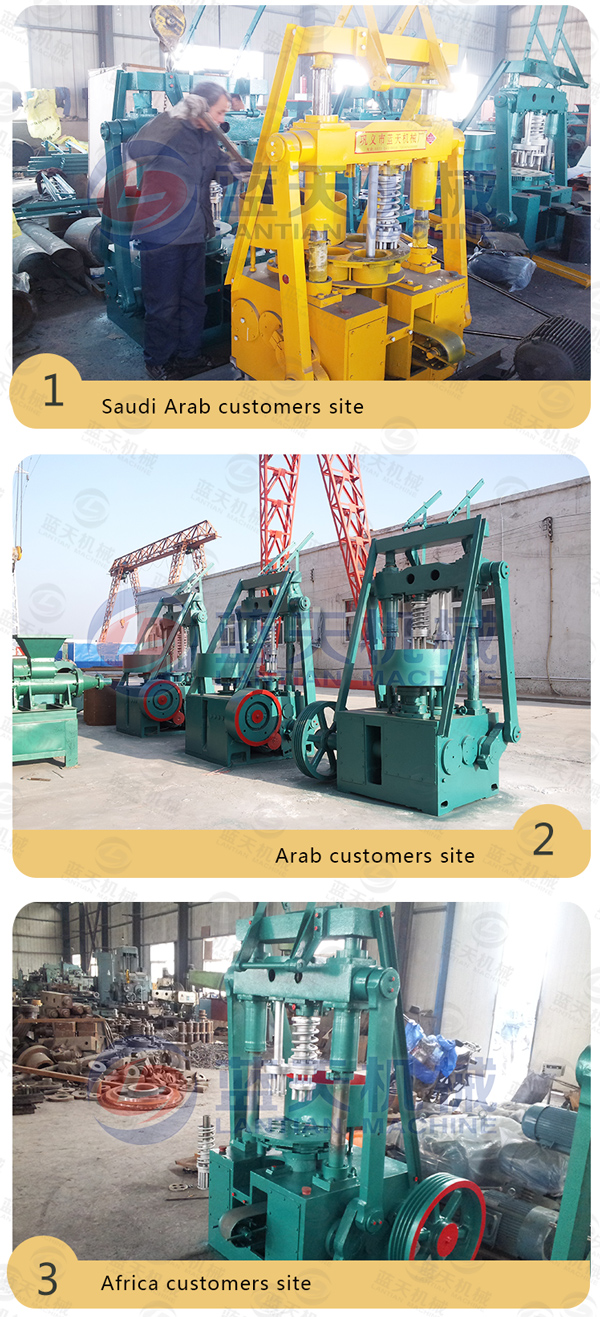

Customers site

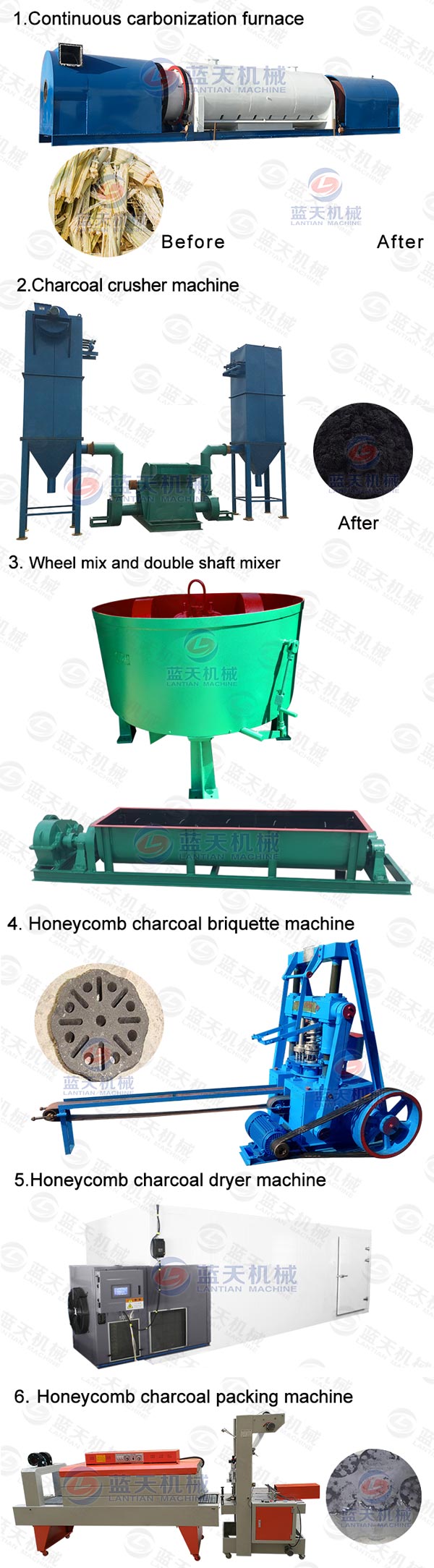

Production process

Carbonized charcoal powder is transferred to the charcoal crushing machine for crushing, and then binder mixer is used to mix the material and binder sufficiently, in order to facilitate the better shaping. The stirred material is conveyed by conveyor belt to the honeycomb charcoal briquette machine for pressing and shaping. If you need to dry, you can use our box dryer for drying, in order to better store and more thorough combustion.
